Fluid Pressure Sensor

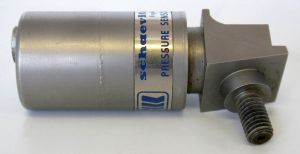

Fluid Pressure Sensor - Photo 1
Catalogue NumberC0619
Sub-categories
Year of manufactureCirca 1980
Location30-Drawer Unit 01 on Rack RAA09 [Main Store]
Object TypeSensor/Transducer
DivisionUnknown
Platform
Manufacturer
Part NoP703-0119
Serial No30306
Dimensions
Width (mm):42
Height (mm):78
Depth (mm):29
Weight (g):192
Inscription(s)Schaevitz England Pressure Sensor type P703-0119 serial 30306 range 0-34.5 bar SG
NotesThis is marked as a Schaevitz manufactured device but the data sheet can be found through a company called StrainSense Limited in Milton Keynes who market these devices. The data sheet shows a more recent configuration, but the Part No. is retained. P700 series pressure transducers are designed for high reliability and stability. The all welded construction incorporates a double cantilever beam with bonded foil strain gauges. Coupling to the pressure diaphragm via a force rod, gives excellent thermal isolation from the fluid or gas being measured. High overload protection is an integral part of the design. These units are capable of sensing extremely small changes of applied pressure and are relatively insensitive to vibration, altitude and shock. The Sensor operates from a 10VDC/AC RMS and the Full Range Output with 1 metre cable is 25mV for a high-pressure range 0-34.5 bar and the SG stands for Sealed Gauge.. Applications for this item include Torpedo Depth Sensing and for Military and Commercial Aircraft but this was used on the Sting Ray Torpedo.
